FumeJet- Pre-engineered Fume Exhaust

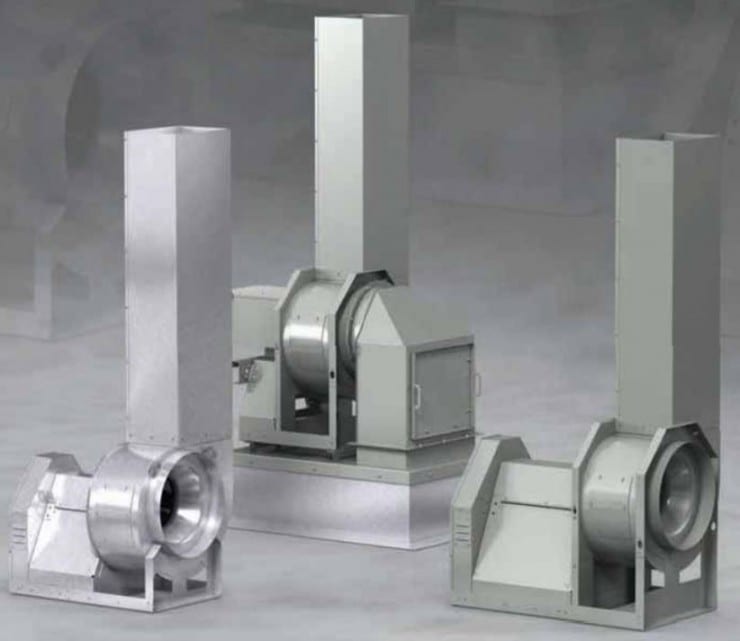

FumeExhaust pic

The FumeJet is a pre-engineered exhaust system with an extended discharge stack to reduce and prevent exposure and possible reintrainment of harmful fumes and odors. Designed per ANSI Z9.2 standard for local exhaust systems, models FJC and FJI provide a compact footprint with motors and drives located under a common weatherhood, complimentary accessories for quick and trouble-free installation, and configurable mounting options to suit different building layouts.

The fan and stack assembly have been designed and factory tested to withstand a wind speed of 22 PSF (equivalent to 92 miles per hour) without the need for guy wires. With a maximum exhaust volume of 15,000 cfm and up to 8 inches wg (1992 Pa) plus multiple levels of construction, the FumeJet line provides a quick and easy alternative to a field built-up system in commercial and industrial applications.

While the Greenheck Vektor product family should still be considered as the solution to laboratory exhaust, the FumeJet is ideal for applications like food packaging, smoke, sterilization rooms, welding exhaust, paint shops, and more. Contact ACP today to learn how a FumeJet can save space, time, and effort on your next design.

FumeJet Model
Performance Range
Max Continuous Temp
AMCA Spark Resistance Options
Up to 5,000 cfm and 5″ w.g.
400 °F
Spark B or C
(FJC-300 only)
Up to 15,000 cfm and 8″ w.g.
500 °F
Spark B or C
