New Coatings Application Guide now available – Learn More Here
Power Roof Ventilators (PRVs)
- Expanded the model GCC metal building/standing seam curb to 250 inches
- New pipe portal products (up to 4 ports per curb)
- New Vari-Green® control, HOA – hand/off/auto
- New hinge options for G/GB/CUE/CUBE size 60-200 – Learn More
- Ship loose option added for curb seal and clean-out port
- Discontinued 2-speed induction motors – use 2-speed VG/VGD options instead
- Discontinued mounted and wired option for speed controllers
- Multiple curb caps sizes are available on CUE/CUBE-99-130 – 19 and 22 inch
- Updated temp/humidity Vari-Green control to a modern form factor
Axial, Inline, and HVLS Fans
- Vari-Green expansion to include wall-mounted model AER sizes 54 and 60 to include 7.5 and 10 hp.
- Expanded upblast model RBUMO performance from 61,800 to 68,000 cfm
- Discontinued recirculating roof-mounted model ERD
- Square inline direct drive model SQ with mixed flow wheel, now have UL-705 and 15-day quick build option
- High volume, low-speed fans (HVLS)
- Model DC-5 has 4 new sizes: 4.3, 5, 6, and 7-foot diameters
- New factory certified service (FCS) option available
Fume Exhaust, Vane Axial, and Tubular Inline Fans
- Model AX has a reversible airflow option (same airflow in both directions)
- QEID-100 series is now available with Vari-Green motors
- 2-inch isolators are available on tubular inline models

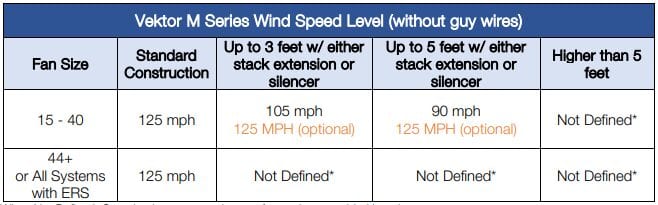

- Vektor-M series has an enhanced wind load rating (See below)
- Improved actuator ratings for 3,000 fpm selections (models FSD-311, 312, 331; SMD-301, 302; and OFSD-311, 312)
- Model OFSD min-height is now 8 by 8 inches.
- Model HBTR-151 is now available on a 10-day quick build

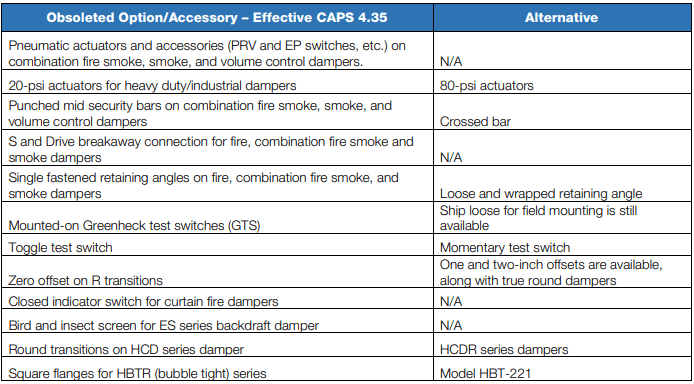

- please see the below outline of obsoleted products and their alternatives.
New model – OPA
- The Open Plenum Array is a custom, fully assembled solution for data center, mission-critical, and custom air handler applications.
- Designed to reduce labor by providing a fully self-supporting factory assembled fan array – no need to provide your own wall or structure.
- Model EVH-302 can now be manufactured down to 8 inches
- Model EAD-635 and 601 increased the max size to 120 inches
- Added custom color match for Kynar® for thinline louvers
Kitchen Ventilation Systems (KVS)
- Product line simplification to reduce complexity and increase the effectiveness
- Grease Trapper, model GFPS, redesign (improved aesthesis, slight dim changes, additional filters on size 30)
Dedicated Outdoor Air Systems (DOAS)
- New model RV-10 is available down to 500 cfm and 3 tons of packaged cooling
- Added optional UV Lights and bipolar ionization for air disinfection
- Optional aluminum energy recovery wheels available on the RVE
- Increased airflows on DGX&MSX H22-MF up to 9000 cfm and MSX-H12-MF up to 5,000 cfm
- DGX-H22 now selectable with liquid propane for VAV arrangements
- External VFD is now selectable for units DGX, IGX, MSX housing sizes H05, H12, and H22
- IGX room control is now available with terminal strip or remote panel selections
- Increased PDX airflow to 8100 cfm
Energy Recovery – Preconditioners (ERV)
- Cooling enable discharge control through external chilled water or split direct expansion (DX) coil (provided by others)
- Factory mounted and wired airflow monitors.
- Radiated sounds data for the models ECV-20 and -30
- Increase motor HP offering on models MiniCore-10 and ECV-10
- Size 8” and 10” round inlets on the 12”x12” and 24”x12” module sizes have been made standard.
- Size 18”x18” and 48”x12” have been added to the standard product offering
- This extended face for 15/16” tegular tee applications, formerly model PDDRE and APDDRE, are now PDDR accessories called frame type 15.
- Style 17 has been renamed to style 17B to identify this frame is designed for bolt slot ceiling systems only.
- Models APDDR and APDDRE are now ordered by selecting the aluminum face option within the PDDR model.
New Barbed Aerosol Injection Port
- The aerosol injection port (INJ) available on the FFU, LFDC, and RFDC permits room-side aerosol injection above a HEPA filter for ease of filter testing and commissioning. The new barbed test port is easy to use and fits 1/2 in. inner diameter tubing.
Shape Diffuser (SHP-CF)
- 2ft x 4ft triangle with 90-degree configuration is now offered as standard.
